The Changkai Sheng Cold Chain Logistics Base project comprises two buildings, each with six stories and a warehouse height of 39.595 meters. Each floor employs four air coolers paired with MX fabric ducts to cool the warehouse, addressing airflow organization issues and ensuring precise temperature and humidity control for stored goods.

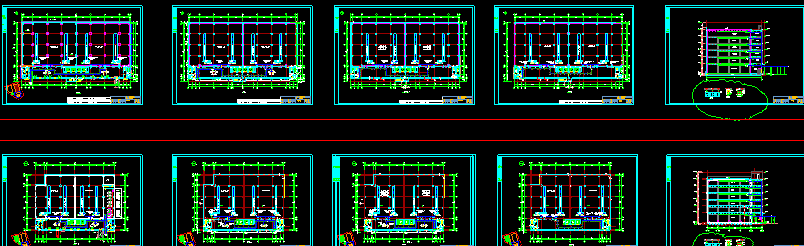

Based on the building characteristics and air supply requirements, the selection design was developed using the patented MX3.0 design software, with CFD technology applied for spatial airflow organization simulation. Specific design details are as follows:

1. Utilization of the MultiXair-S Series Rectangular Fabric Air Distribution System;

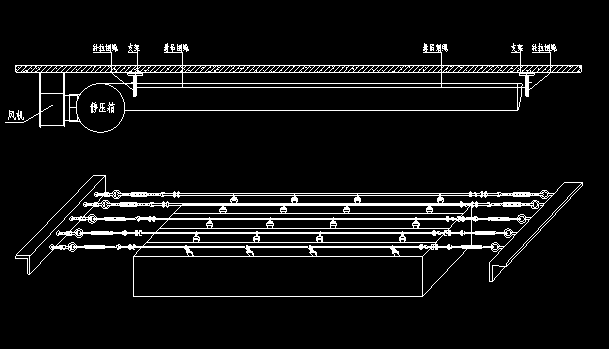

2. For the 39.595m-high cold storage, a multi-row track steel cable suspension system was employed for ceiling-mounted installation.

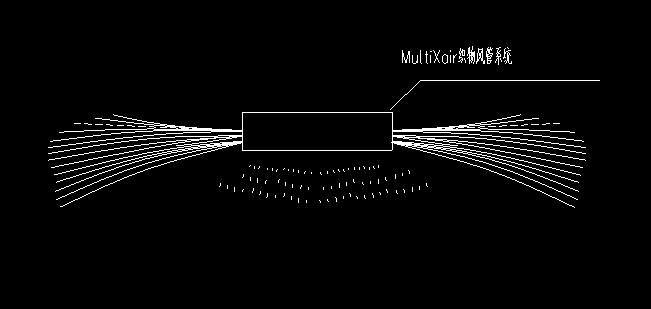

3. Air supply employs both permeation and perforated outlet modes. Terminal jet nozzles are installed with perforations arranged in an S-shaped cross pattern to maximize air coverage.
