MX-S series
MX ™- Fabric Duct engineers believe that different industries, due to their production nature and process characteristics, have different building environments, spatial structures, temperature, humidity, and other factors, which have a crucial impact on product selection.
| model | S-0 | S-1 | S-2 | S-3 | S-4 |
| Air outlet method | Fabric penetration | Mesh scattering | Orifice outlet air | Directional nozzle | efflux nozzle |
| thickness(mm） | 0.21-0.47 | 0.21-0.47 | 0.21-0.47 | 0.21-0.47 | 0.21-0.47 |
| weight(g/㎡) | 200-275 | 210-310 | 200-290 | 280-320 | 280-360 |
| shrinkage | ±0.2% | ±0.2% | ±0.2% | ±0.2% | ±0.2% |
| Fire certification | B | B | B | B | B |
| corrosion resistance | have | have | have | have | have |
| Anti condensation property | have | have | have | have | have |
| shape | 5 shapes to choose from | 5 shapes to choose from | 5 shapes to choose from | 5 shapes to choose from | 5 shapes to choose from |
| colour | Color card optional | Color card optional | Color card optional | Color card optional | Color card optional |
Performance of S-series fabric air duct:
1. Flame retardancy: B-grade fire resistance, permanent flame retardant, non melting and non dripping, non-toxic to combustion
2. Breathability: It has multiple breathability rates. Meet the needs of different places for use
3. Waterproof to washing: can be thoroughly cleaned more than 50 times without any flocculent fabric precipitates
4. Antibacterial and antifungal treatment: treated with antibacterial and antifungal measures
5. Anti condensation: patented design, fabric air guide, minimal loss of cold and hot loads, no condensation.
6. Conventional weight: 320gsm, 300gsm, 260gsm.
7. Execution standards: EN ISO 11611、EN ISO 11612、IEC61482-1-2。
8. Application: Low pressure air conditioning ventilation system and heating system field
9. Public areas: sports venues, exhibitions, auditoriums, etc
10. Business areas: supermarkets, commercial centers, cinemas

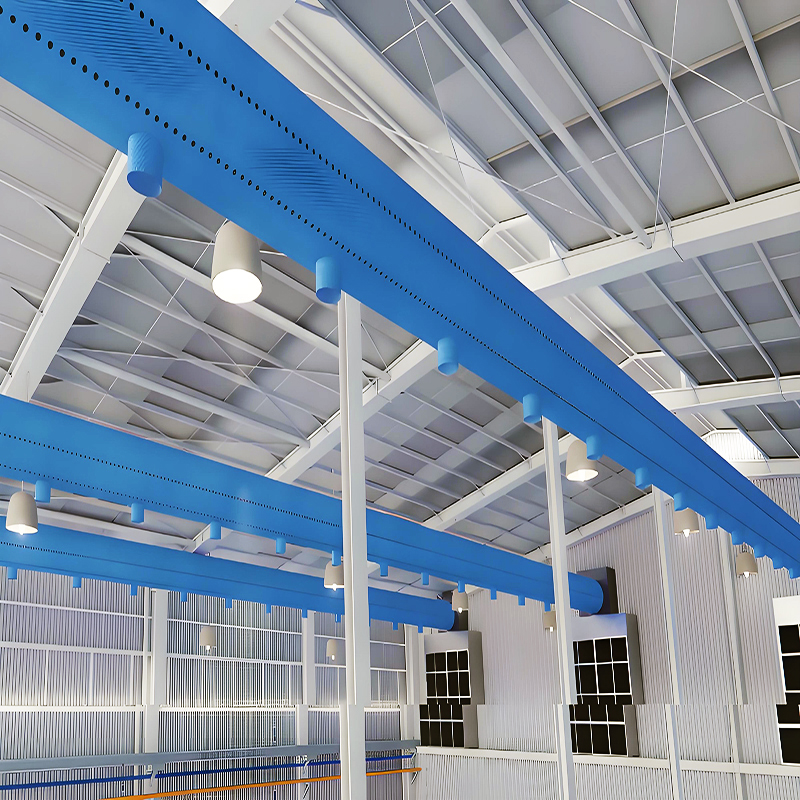

11. Industrial fields: ordinary machinery workshops, textile workshops, logistics warehouses
